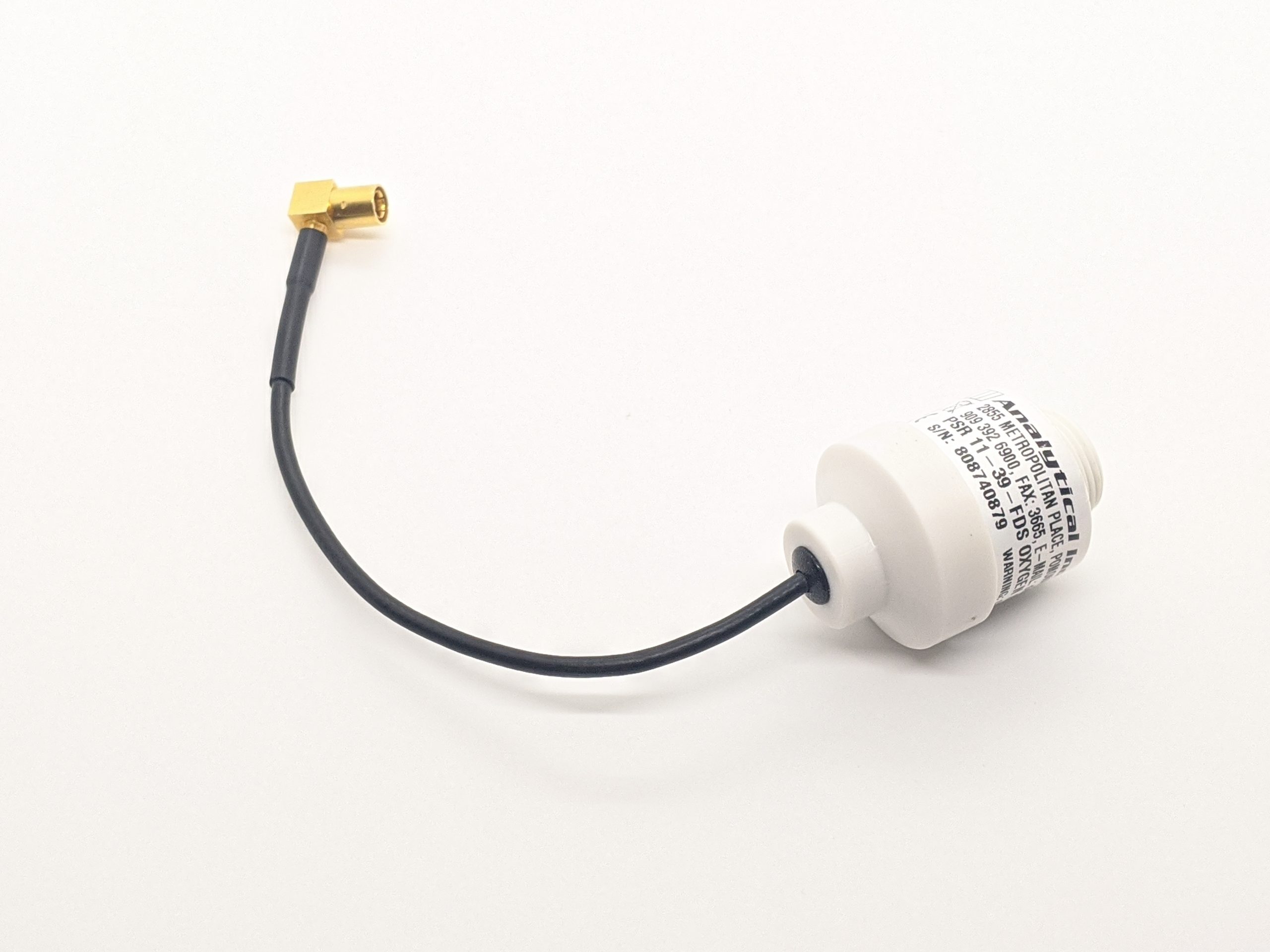

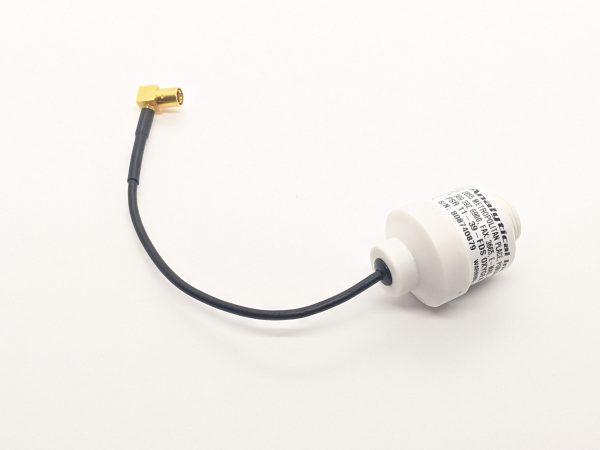

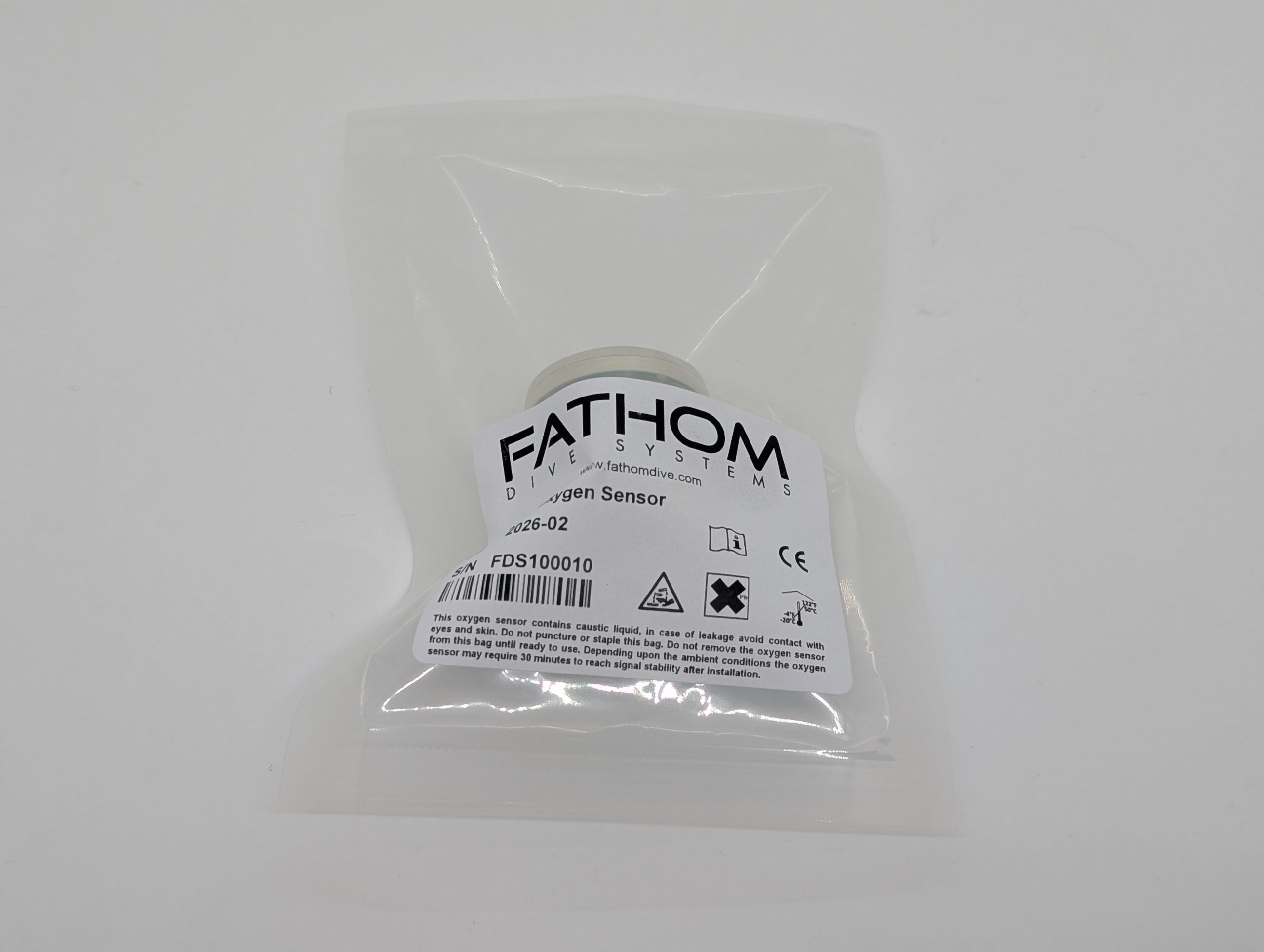

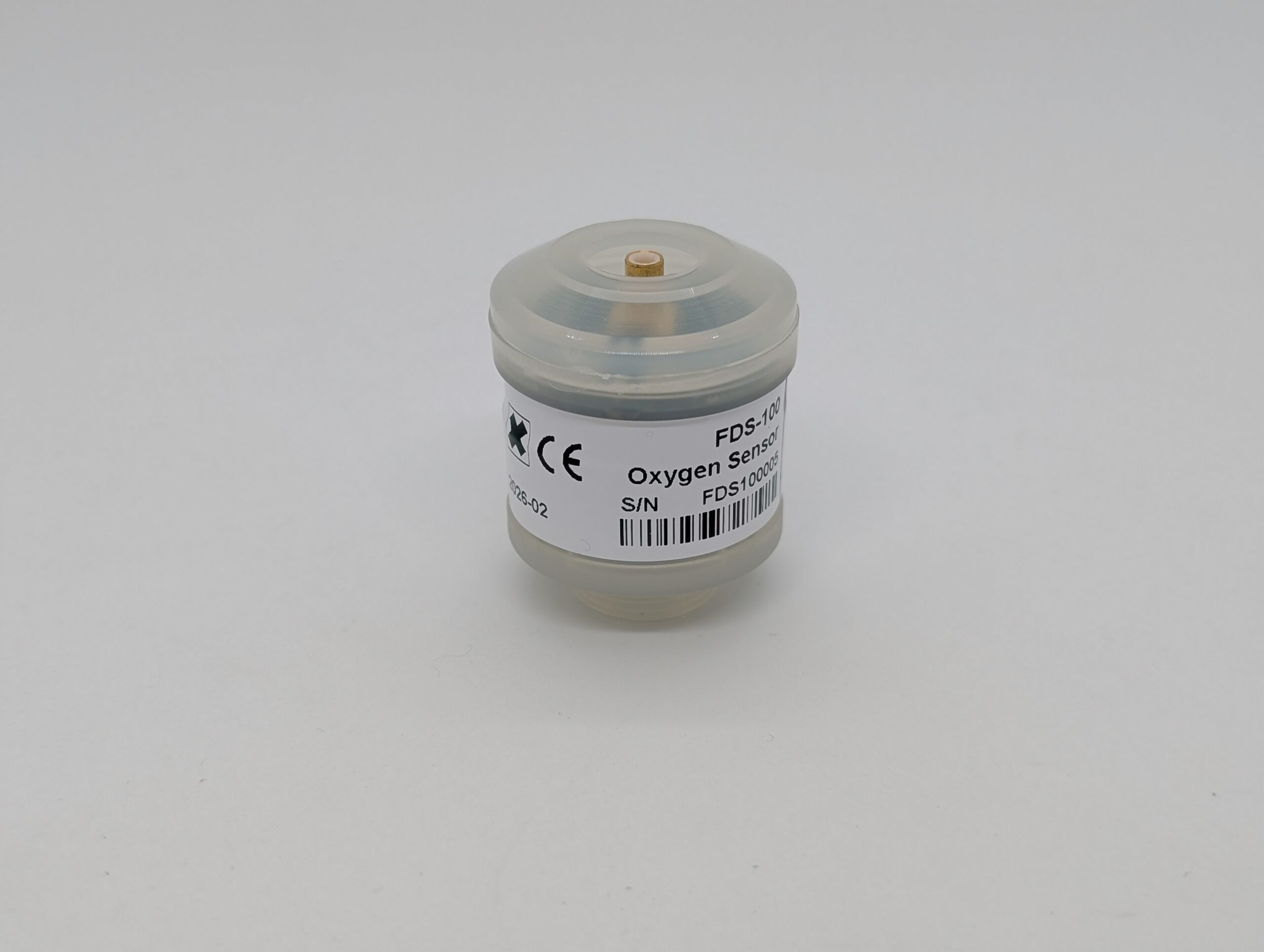

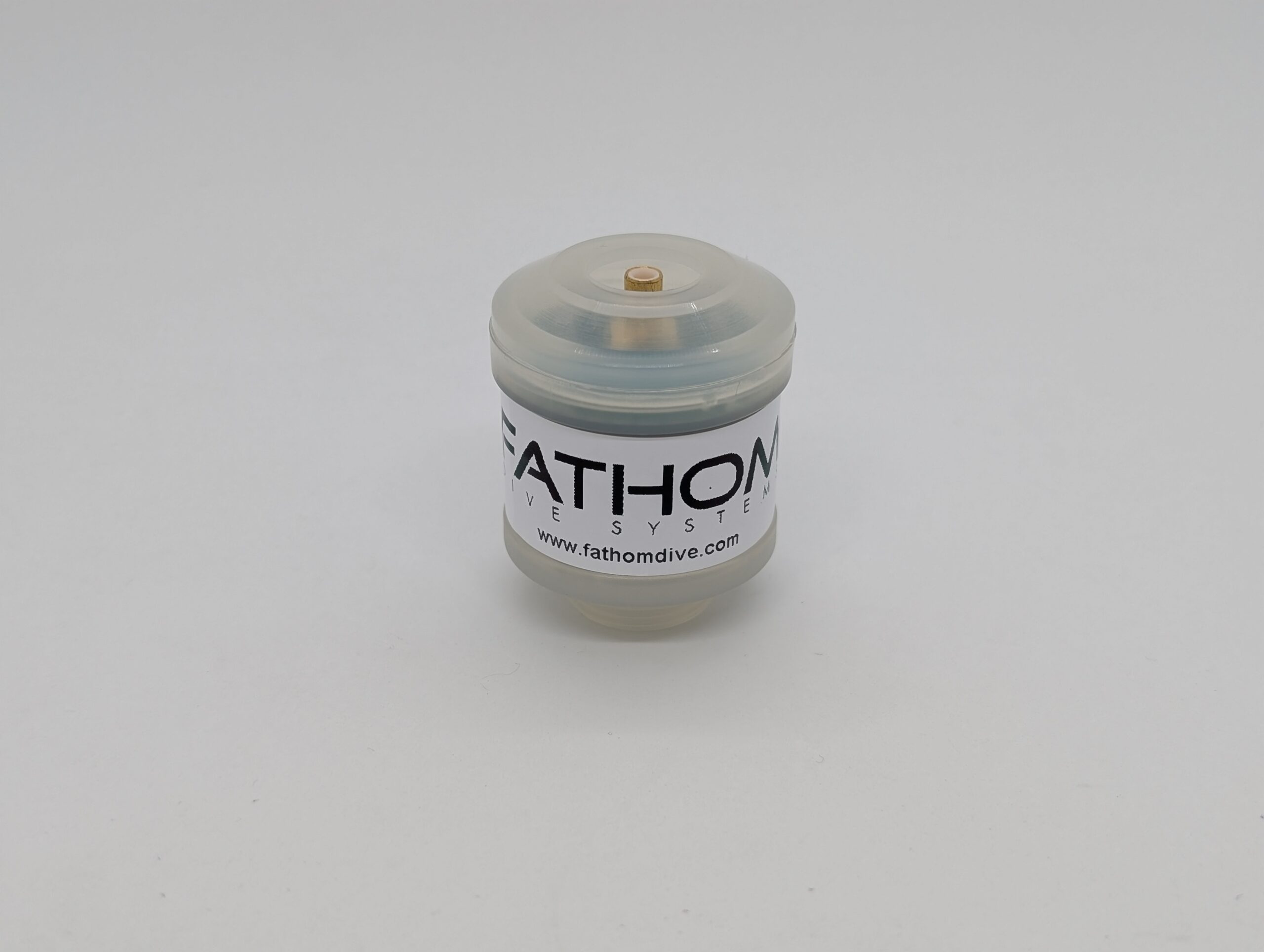

AI Oxygen Sensor, Fathom CCR

Description

Technical Specifications

Measuring Range: 0-100%
Accuracy (1): +/- 2% of Full Scale
Signal Output (2): 8.5 – 14 mV
Linearity: +/- 2% of Full Scale
Response T90: 6 sec
Temp Coefficient: compensated
Operating Temp: 0 to 45C
Recommended Storage (3): 0 to 25C
Qualified at: 1.8 ATA
Shelf Life (4): 6 months
Humidity Non-condensing: 0-99% RH
Expected Life: 42 months
Warranty (5): 12 months after purchase, or 15 months after manufacture (whichever comes first
Electrical Conn: 90º SMB Female on 5.25″ cable

Conditions: 1) At constant temperature and pressure. 2) In air (20.9% oxygen) at 25C and 1 atm. 3) Sensor may be stored up to 55C on an intermittent basis, for example, during transportation. 4) In original Package at 25C and 1 atm. 5) Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by Analytical Industries Inc. is limited to replacing the sensor. Analytical Industries In. will not be liable for buyer’s negligence, misapplication, abuse or accident.
