Tank bands fit with most adjustable manifolds, like Scubapro, Halcyon, and Scubatec.
Available to fit the follow sizes:
| Designation |
Article No. |
Cylinder
diameter |
Manifold spacing |
Bolt length |
Cylinders |
| D7eng |
140/155 |
5.5″ / 140mm |
155mm |
120mm |
LP45, LP50 |
| D12wide |
178/215 |
7.00″ / 178mm |
217mm |
140mm |
LP85 |
| 80 cuft |
184/202 |
7.25″ / 184mm |
202mm |
150mm |
AL80 |
| D15/D20 |
204/217 |
8.00″ / 204mm |
217mm |
150mm |
LP104 |
|
|
|
|
|
|
Description

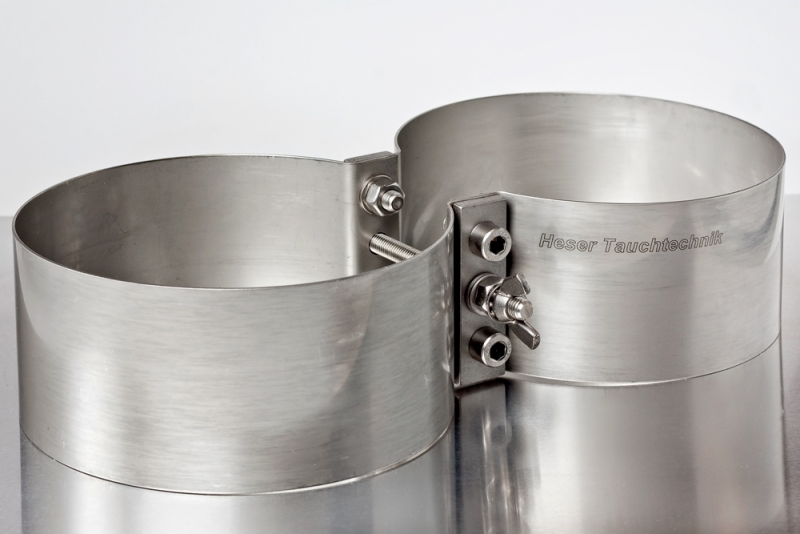

The clamps are suitable for all manifolds with adjustable spacing, such as those from Scubapro, Halcyon and Scubatec, etc.
Aircon and Nautec manifolds: Several customers have already used the clamps with Aircon or Nautec manifolds and were very satisfied.
Advantages of these clamps:
- 68mm band width: The width of the band is continuous and not reduced anywhere by cutouts, thus the bottles are guided firmly and cleanly.
- 1.25mm tape thickness.
- The clamps are screwed together in the middle.
- Good fit: This simplifies assembly and guides the bottle cleanly.
- Very thick center rib (5mm): This prevents the center section from bending when the center bolt is tightened.
- All parts are made of seawater-resistant (V4A; 1.4571; 316Ti)
- The bolts are already included in the price.
Included in the package for one set:
- 2 clamps
- 2 bolts, each with 1 wing nut, 1 fan washer, 1 nut, 1 cap nut and 2 washers
