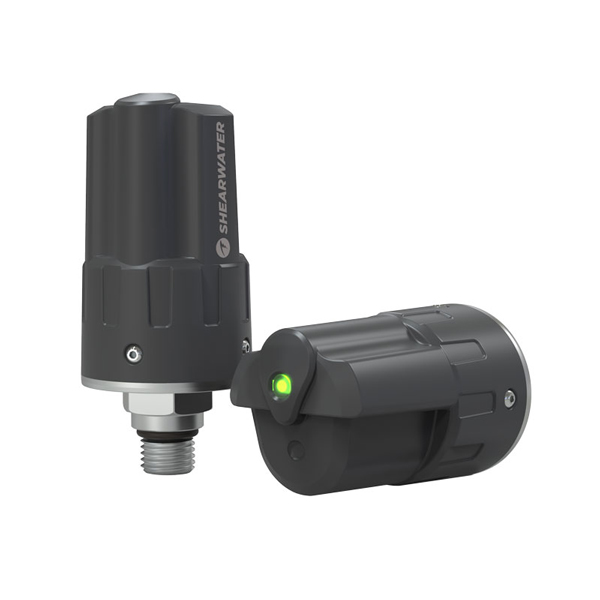

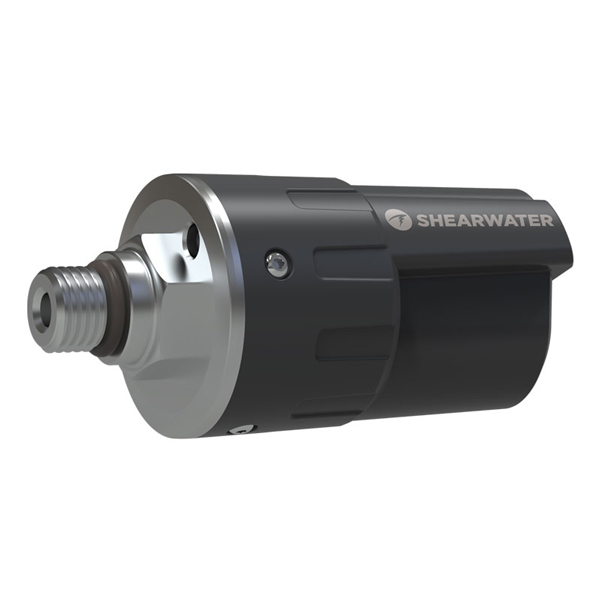

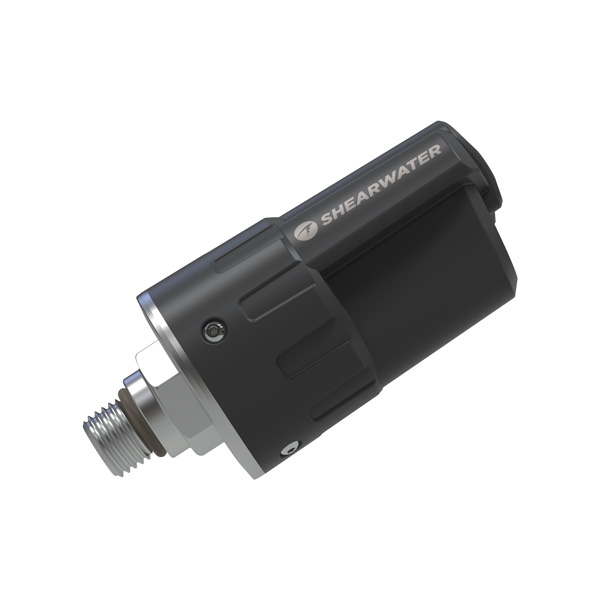

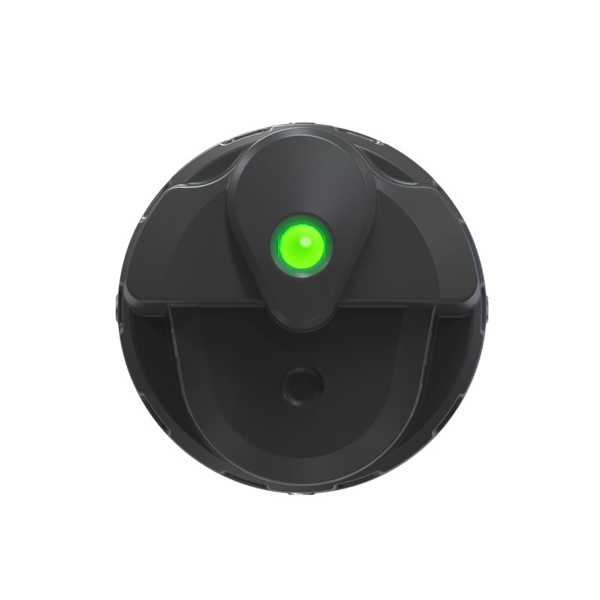

SWIFT AI Transmitter

Description

Technical Specs

• Depth limit: 200 m
• Operating temperature range +4°C to +34°C
• Short-term (hours) temperature range: -10°C to +50°C
• Long-term Storage temperature Range: +5°C to +20°C
• Pressure port: 7/16″ -20UNF
• Rated air pressure: 300 bar / 4350 psi
• Pressure reporting resolution: 0.14 bar / 2 psi
• Pressure reporting interval: 4.8 – 5.2 seconds
• HP port proof pressure: 450 bar / 6525 psi
• Accuracy: 5% full scale
• Zero offset: <3.5 bar / 50 psi
• Activation pressure: 7 bar / 100 psi
• De-activation pressure: 3.5 bar / 50 psi
• Cover screws: 1.5mm hex 316SS
• Body o-ring: 24×1.5mm
• HP port o-ring: AS568-904 75A Viton

Dimensions

• Size 76mm (L) x 34mm (D)
• Weight 135g

Battery

• Battery type: CR2 3V Lithium (User replaceable)
• Ships with and recommended battery type: Panasonic CR2 Industrial
  Lithium
• Battery Capacity (approx): 2.55 Wh
• Battery life: Up to 100 dive hours (100 one-hour dives, with 20 minutes GNSS on-time before and after each dive) or 2 year storage time

GNSS

• GNSS Constellations: GPS L1C/A, Galileo E1B/C, BeiDou B1l
• Location resolution: 2 m
• Location accuracy (condition dependent): 4 m
• Location reporting interval: 4.8 – 5.2 seconds
