Brand:FATHOM

Gemini CCR

$7,695.00$8,695.00

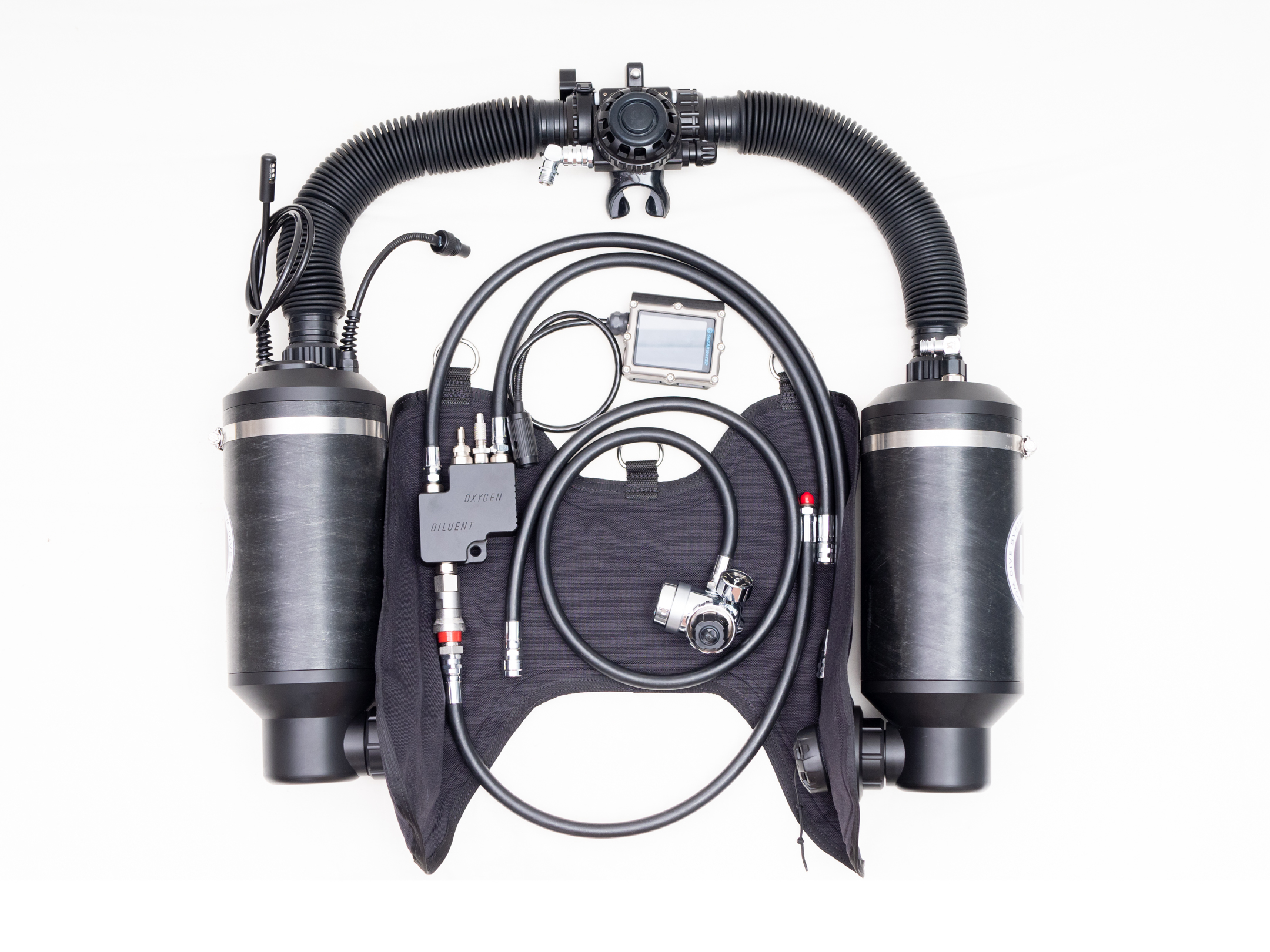

The FATHOM Gemini is split-scrubber design mCCR



NOTE: Training is required to purchase.  Please contact one of the FATHOM CCR instructors at https://www.fathomdive.com/training/

Description

Specifications
• 5” (127 mm) dia x 13” (330 mm) tall
• 20.2 lb (9.2 kg) without cylinders or scrubber material

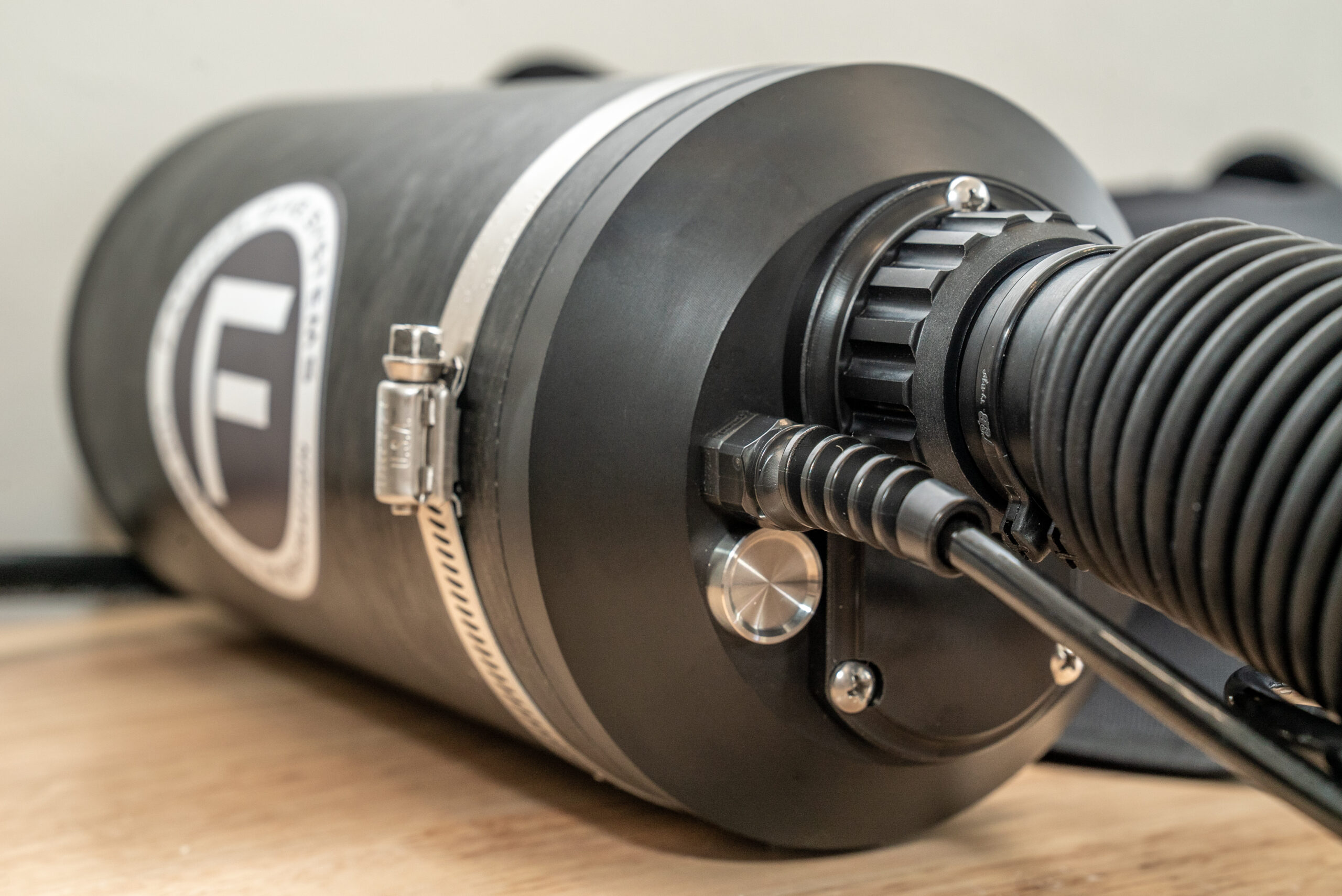

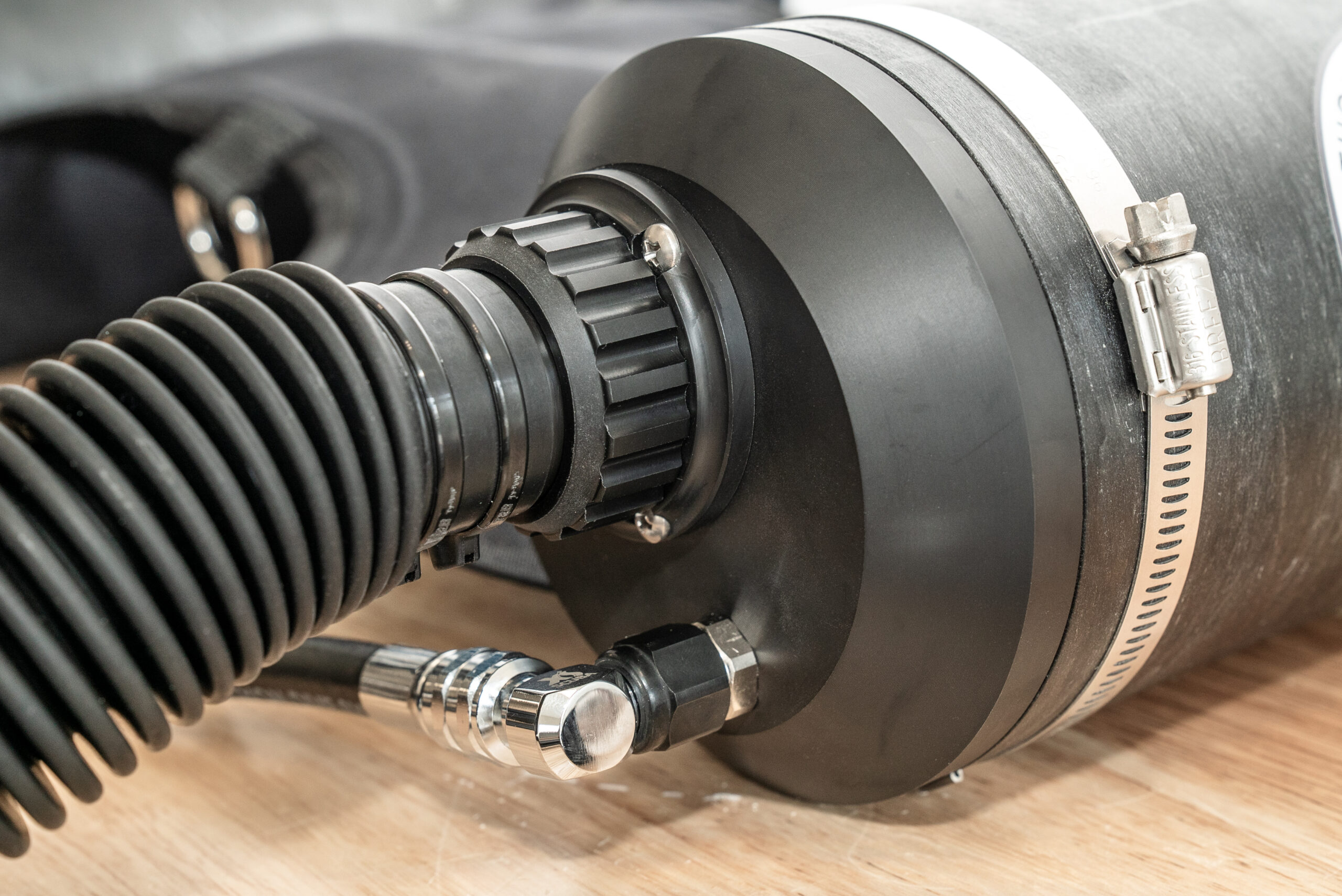

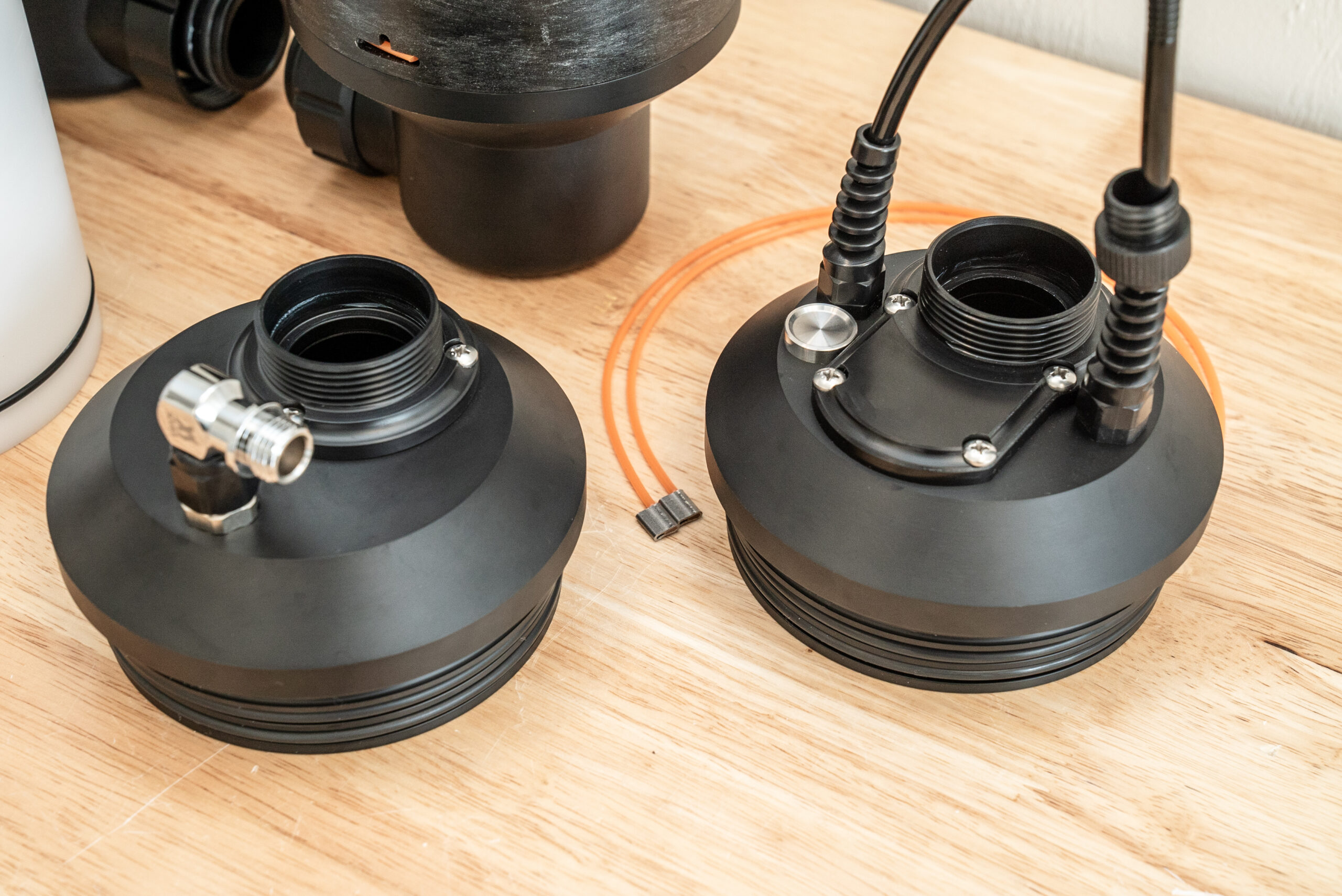

Heads
• No batteries inside head eliminates the possibility of toxic chemicals in breathing loop
• Fully potted and submersible head eliminates the possibility of corrosion on sensitive life‑support equipment
• Splitter/isolation board allows two devices to monitor oxygen sensors
• Hardwired leads and coaxial SMB connectors on oxygen sensors eliminate multiple connections and fragile Molex connectors.
• Minimal head space reduces static loop volume
• Gas addition in exhale head insures proper gas mixing in scrubber before it reaches sensors and diver

Breathing Loop

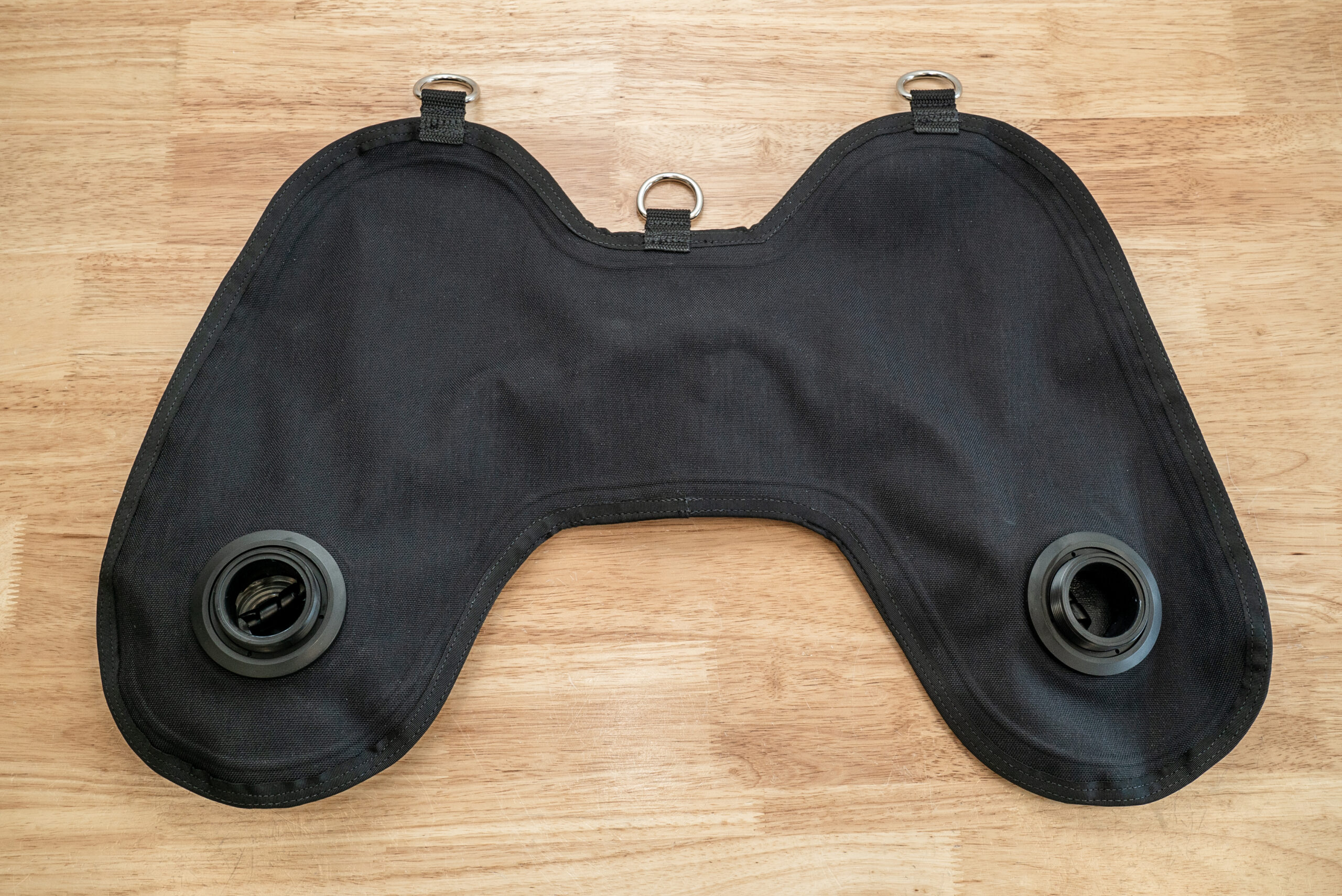

• Backmounted counterlung provides excellent work of breathing (WOB) in all positions while keeping frontal area free of clutter for stage bottle mounting and minimizing diver’s profile.

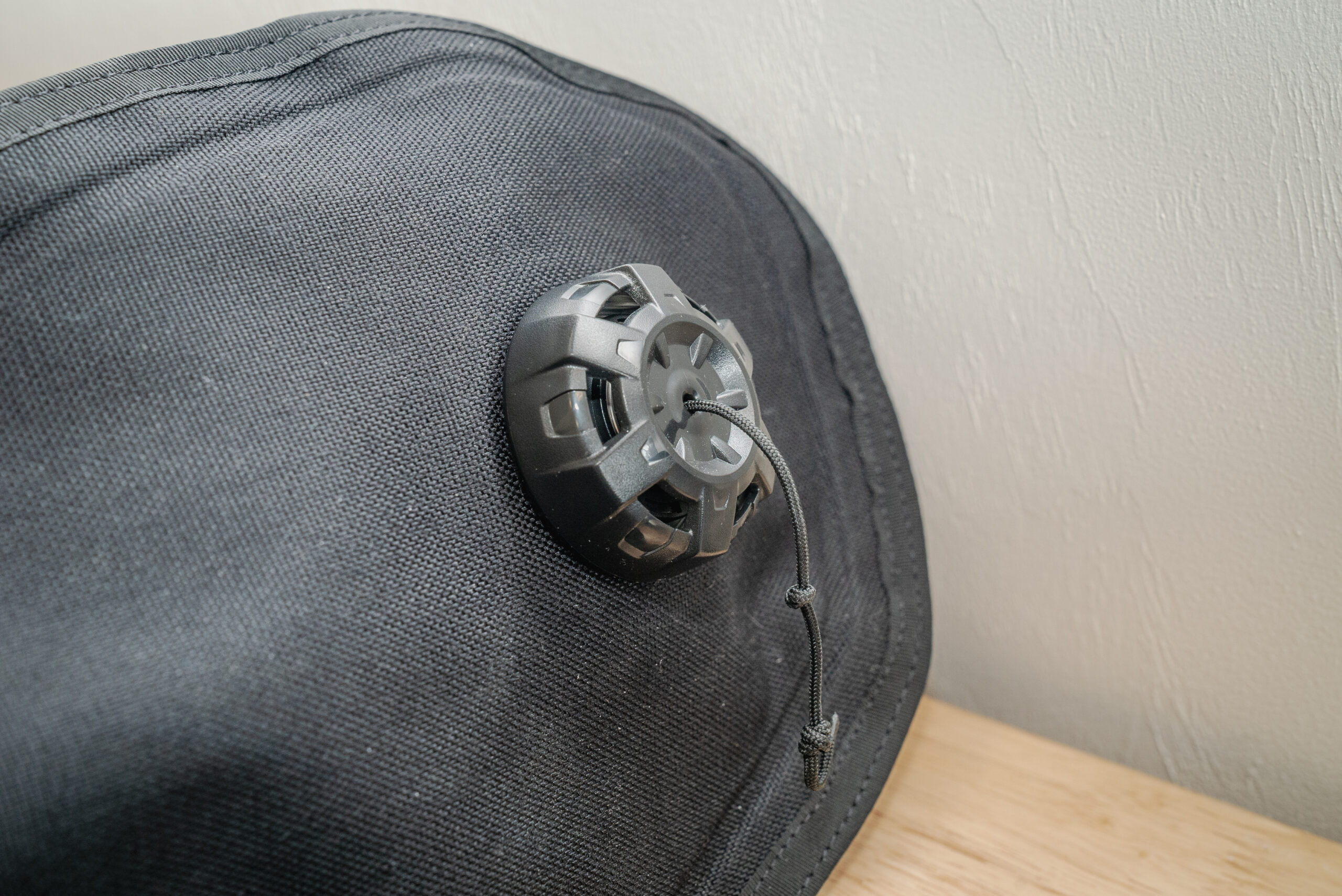

• OPV in counterlung acts as a water dump and allows diver to dewater unit if needed.

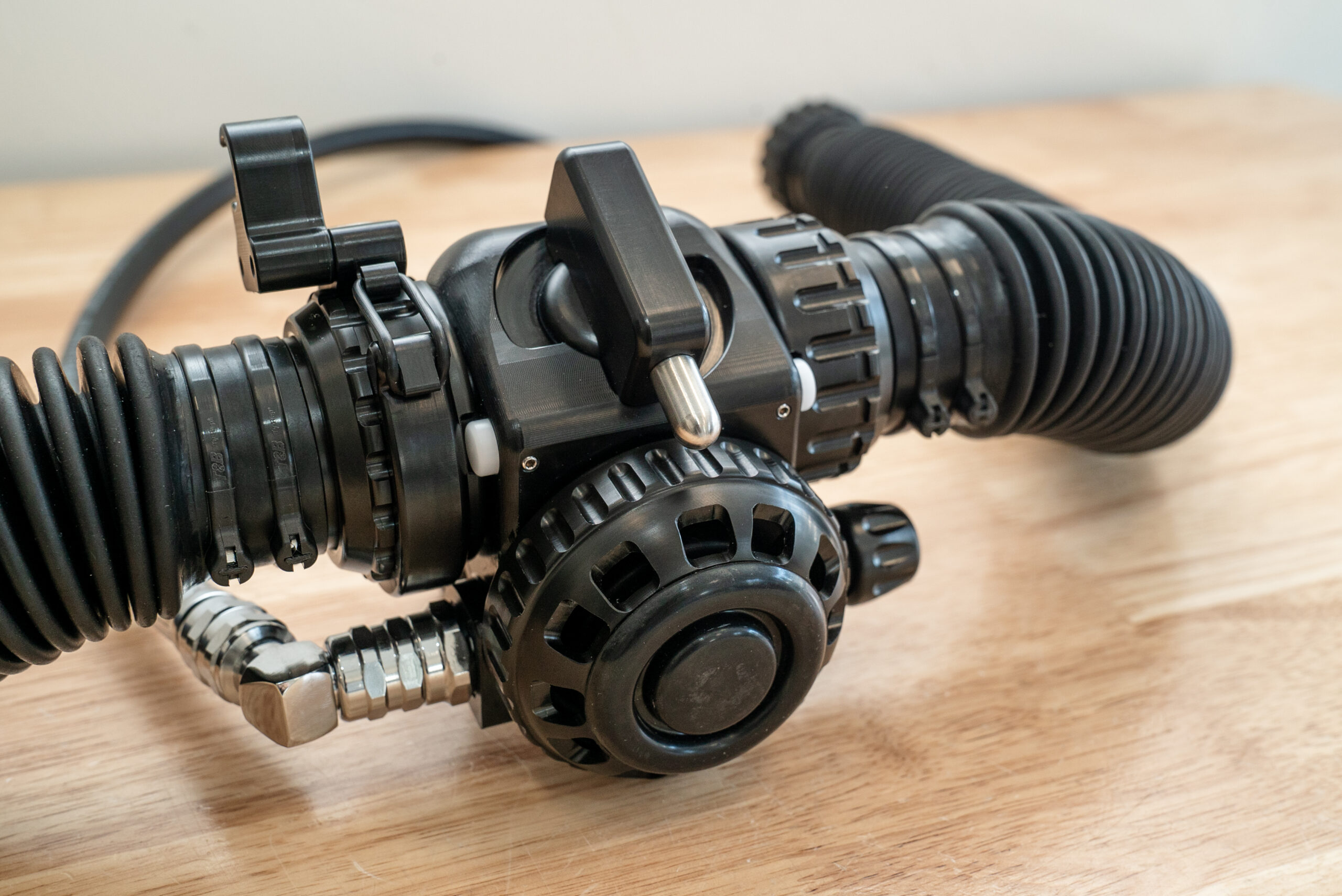

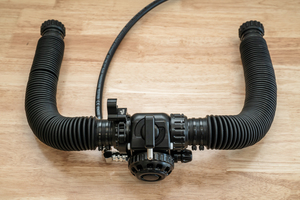

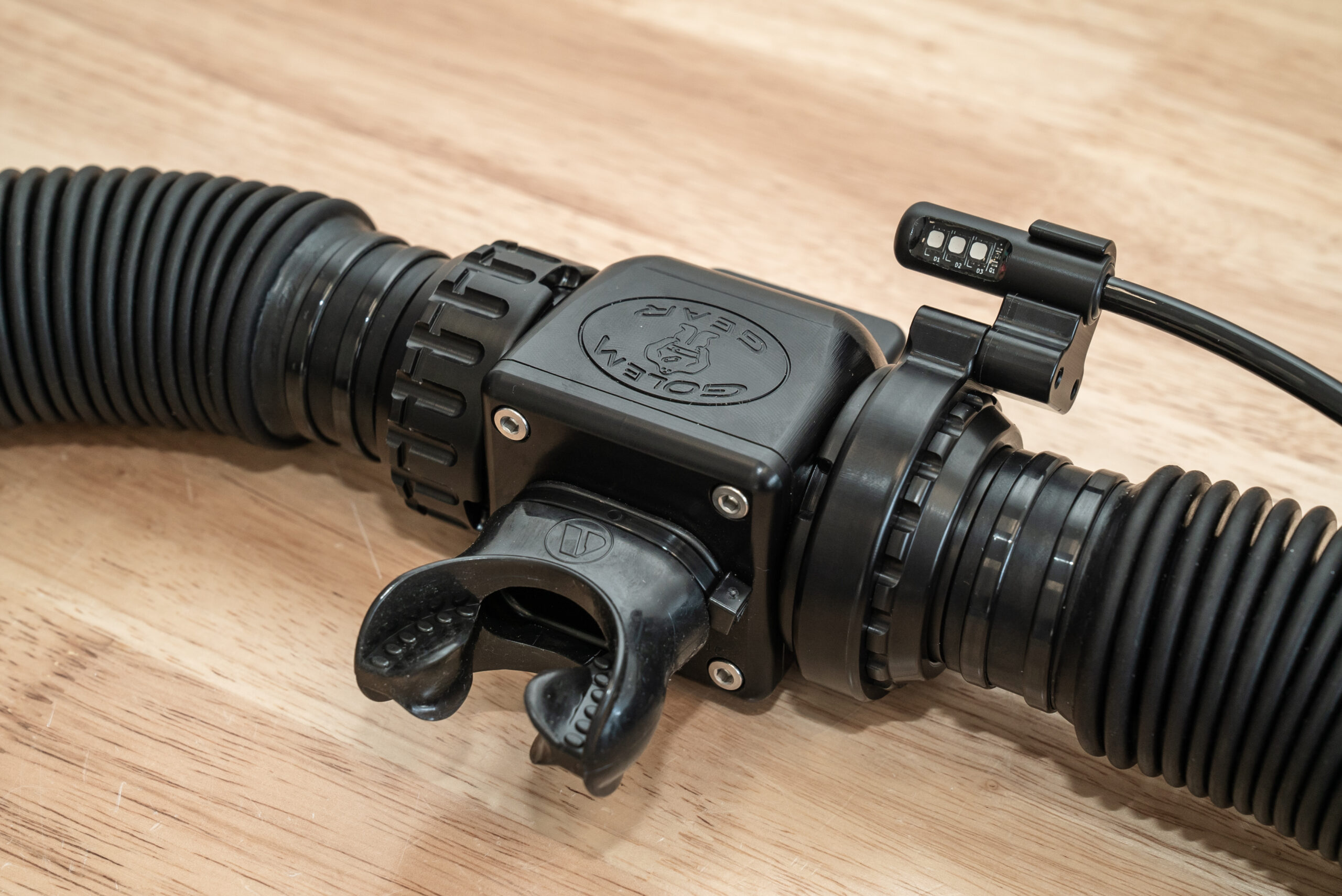

• Shrimp DSV with quick disconnect bayonets allow for easy cleaning and inspection of one-way valves
› Optional Shrimp BOV allows for rapid bailout without removing mouthpiece

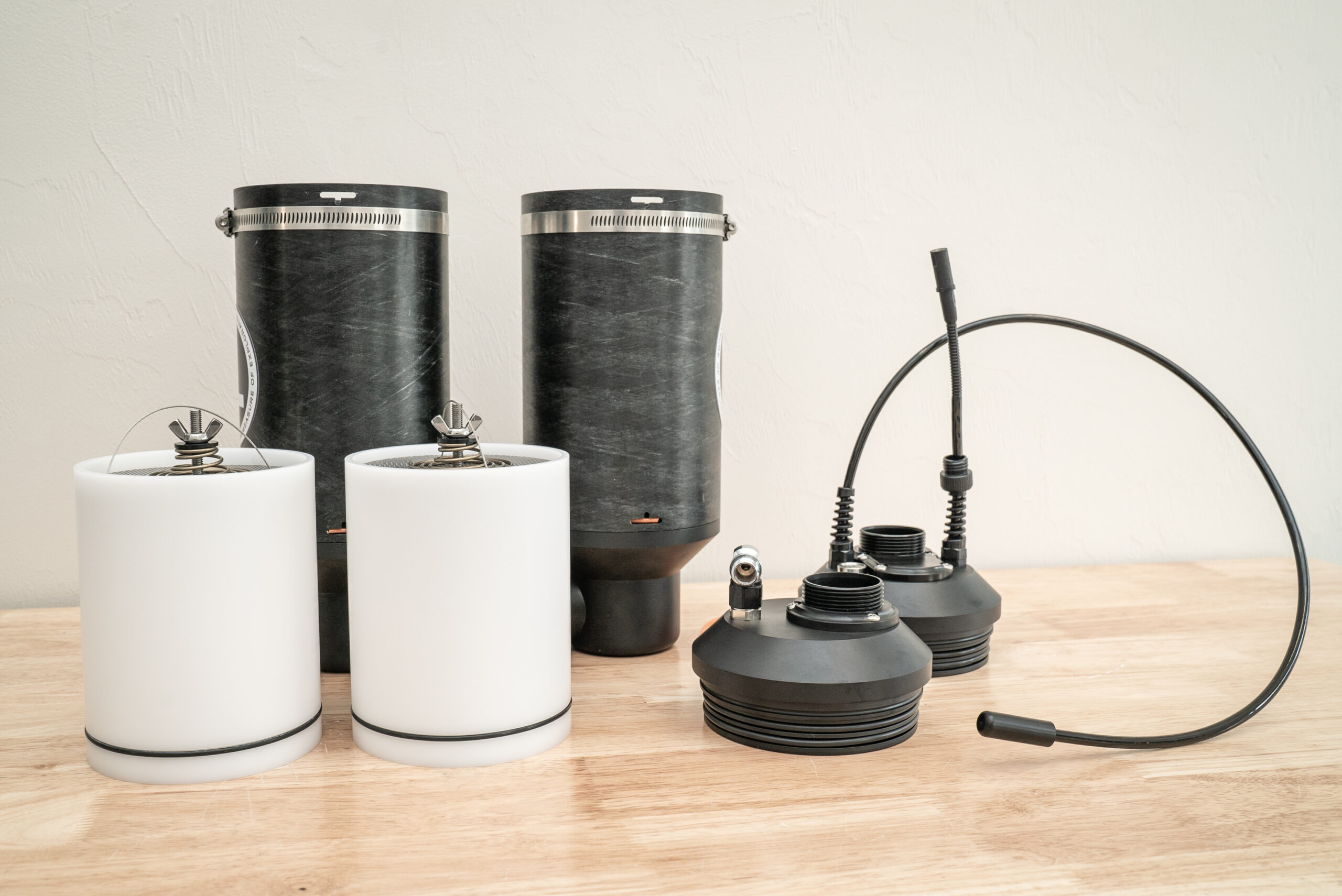

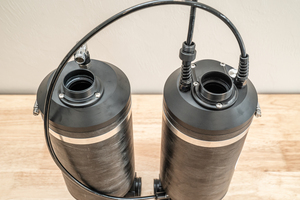

Scrubber
• 4.8 lb (2.2 kg) dual axial scrubbers

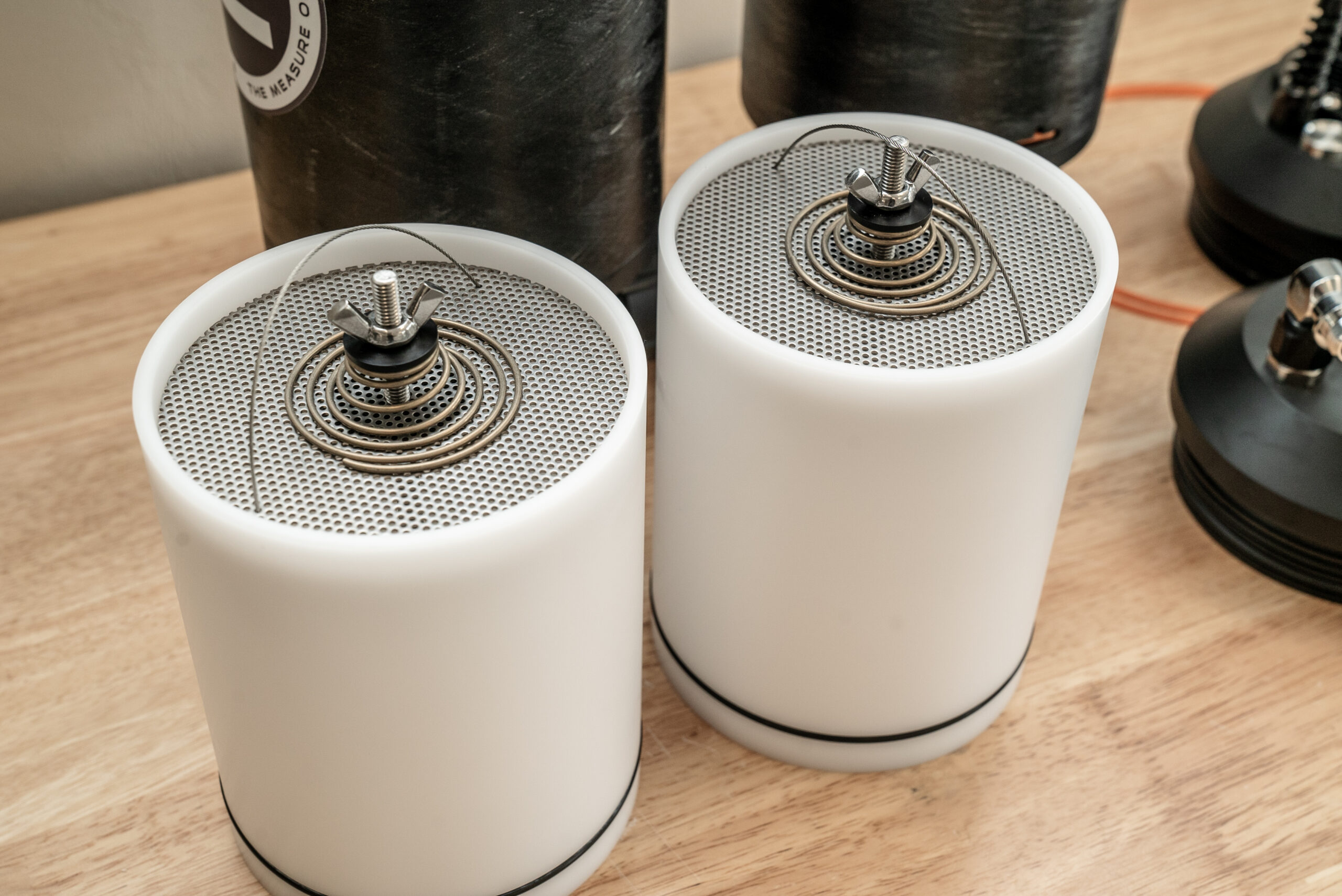

• Removable and swappable scrubber baskets
• Black Amalgon canister insulates scrubber 400 times better than aluminum
• Latchless head, canister and bottom streamlines profile

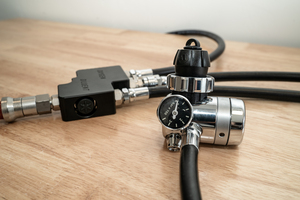

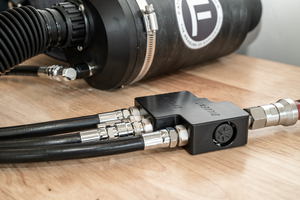

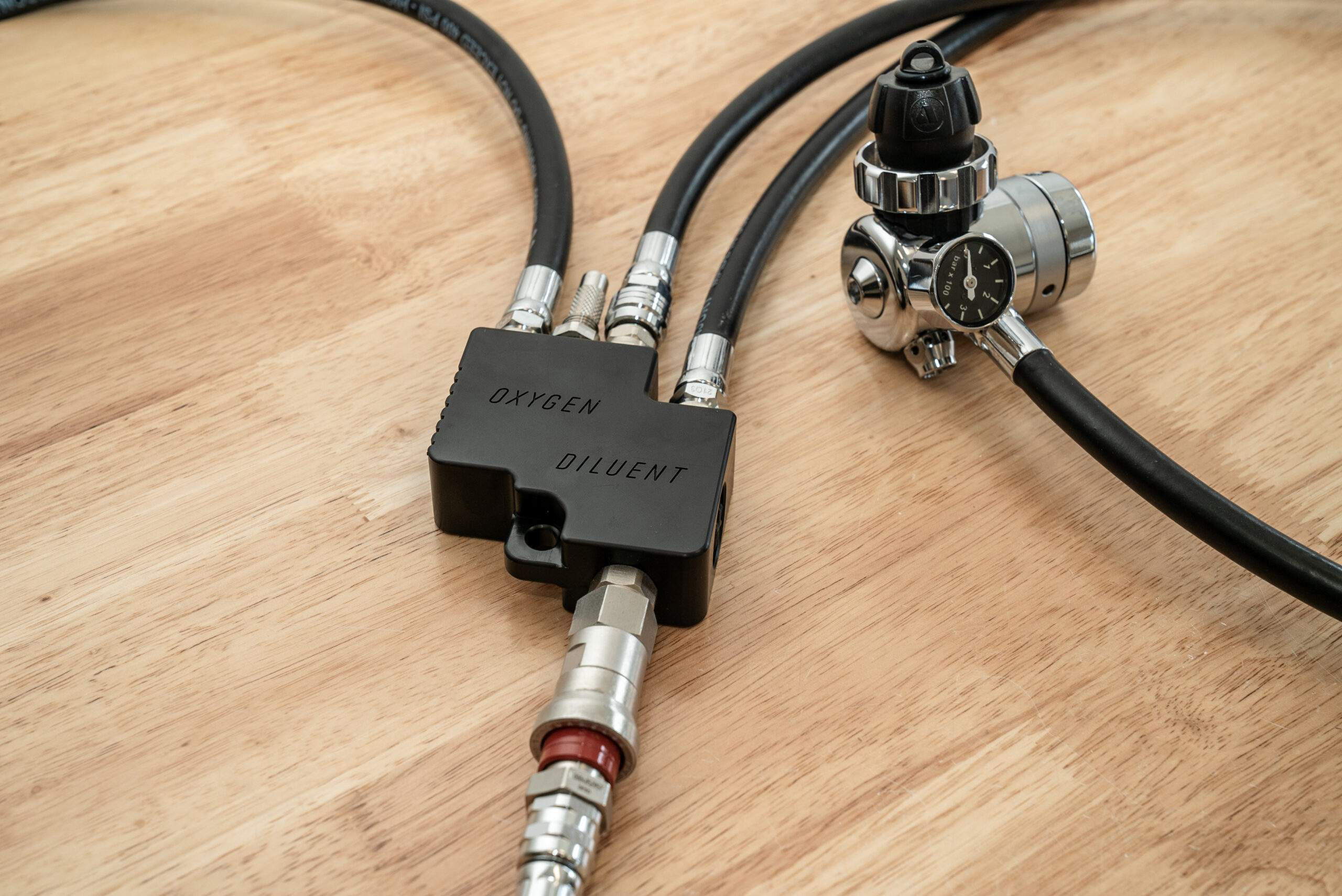

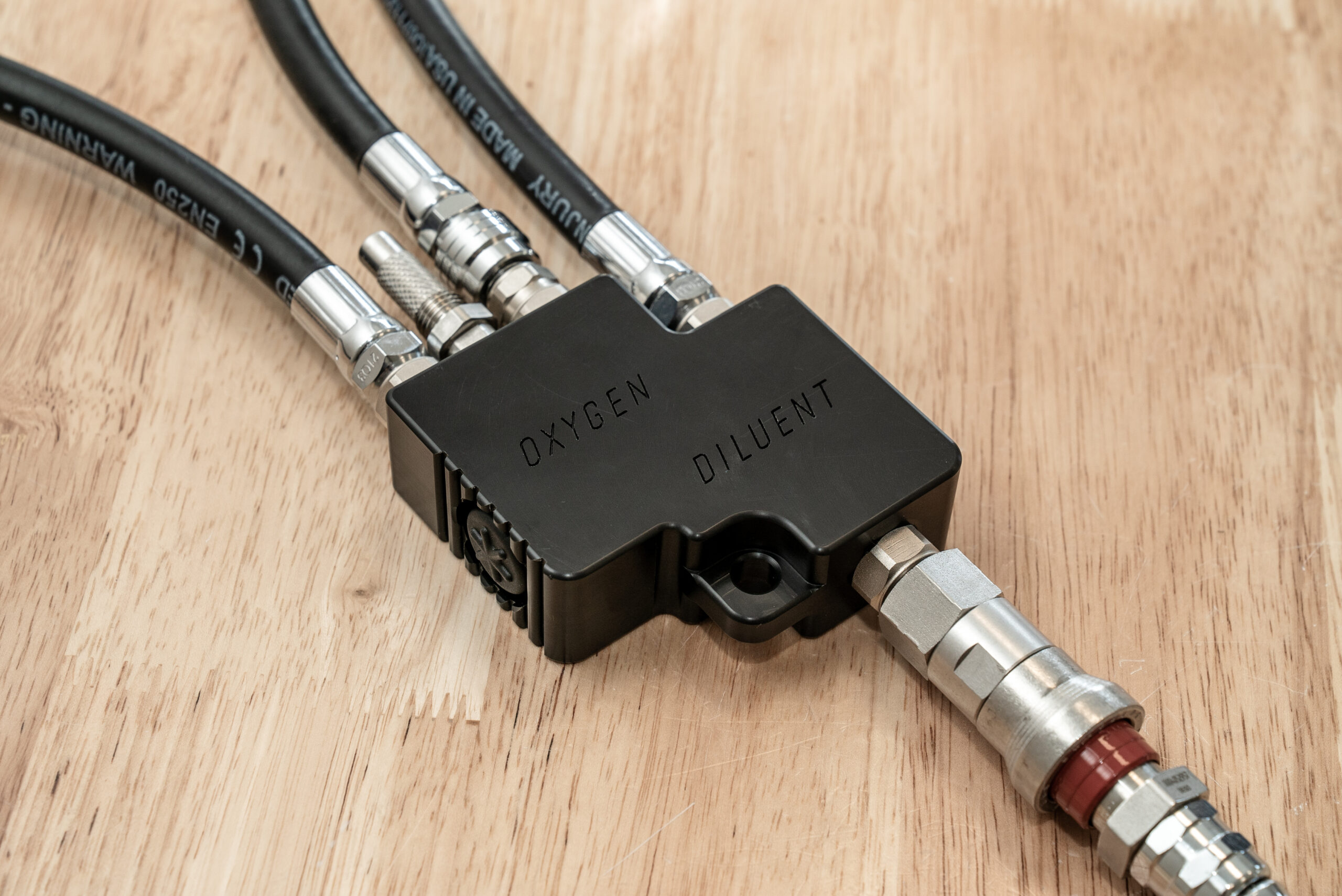

Dual MAV/Needle Valve
• Needle valve incorporates the simplicity of a constant mass flow (CMF) orifice without the IP adjustment issues or the risk of blockage from debris.
• 316 SS Swagelok needle valve for precise flow
• Fully recessed manual oxygen addition button prevents unwanted oxygen addition

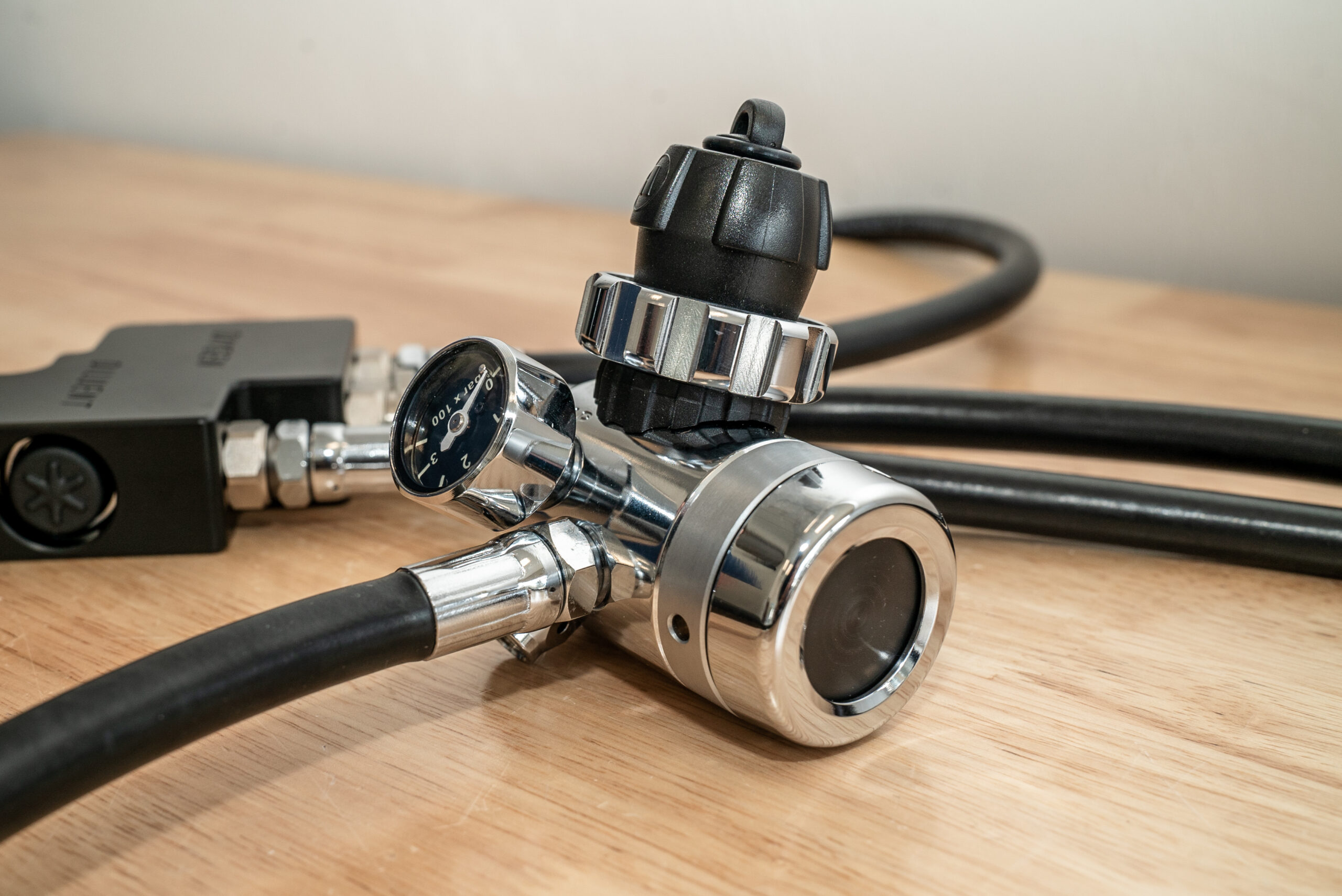

• Non depth compensated Apeks DS4 1st stage with stronger spring allows for adjustment from 200-290 psi (14-20 bar) IP for 400-600 fsw (122-183 msw) maximum depth.
• Fully recessed manual diluent addition button prevents unwanted gas addition
• Female QC-6 plugs into offboard bailout/diluent
• Bypass port routes gas directly to optional BOV

PO2 Monitoring
• NEW and improved HUD provides reliable secondary PO2 monitor
› Reversible display
› Automatic brightness adjustment
› Voltage indication on start-up
› Visual alarm feature

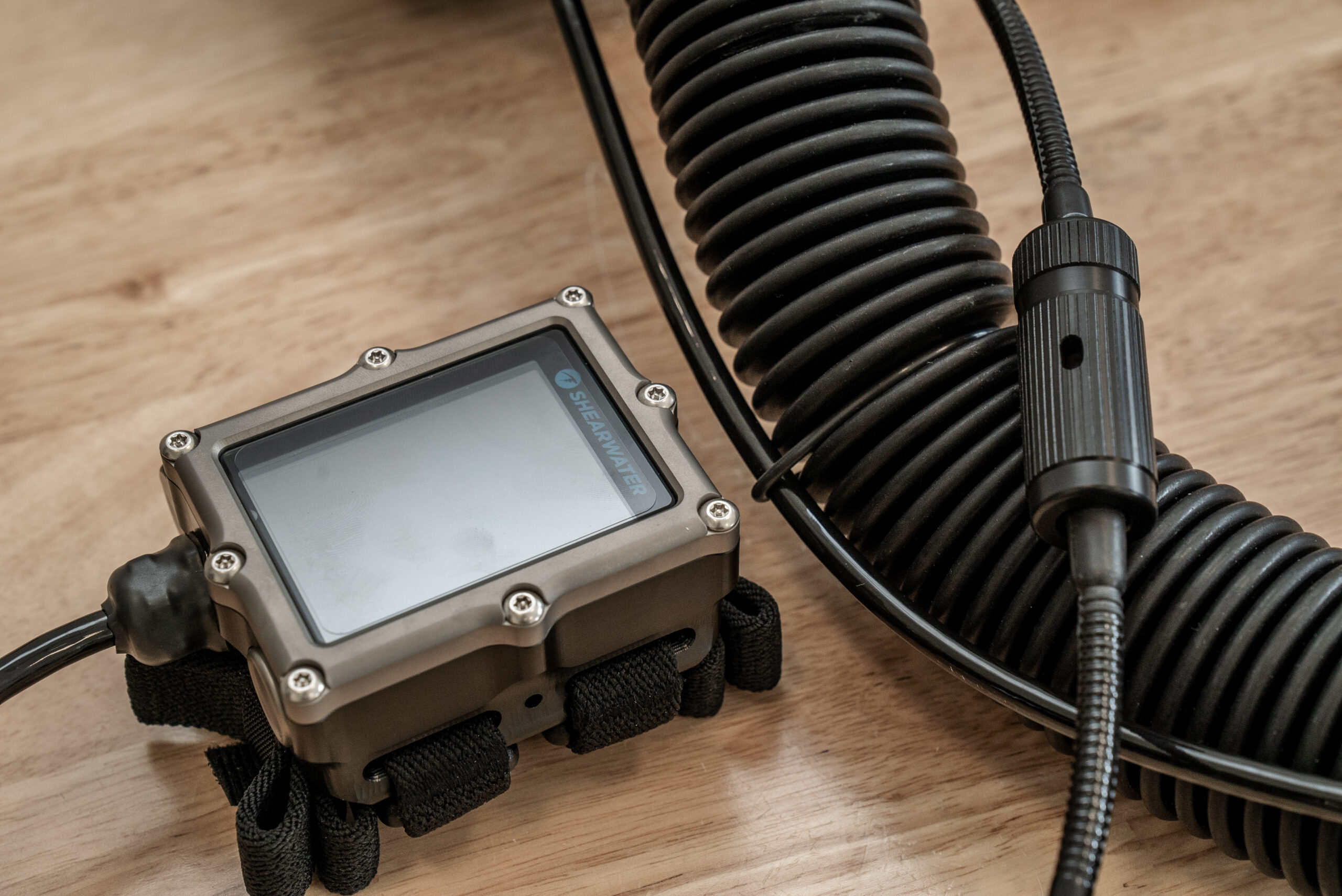

• NEW Shearwater Petrel 3 primary display
• Optional Shearwater NERD 2 replaces Petrel 3 as primary display

Downloads

FATHOM Gemini CCR Spec Sheet
pdf | 161.41 KB | View online | Download
Last updated: November 14, 2022
